Ant mound as an optimal shape in constructal design

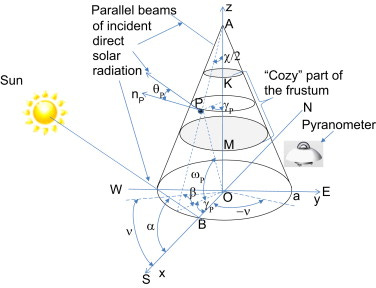

Abstract: Sizes, shapes, ambient and in-dome temperature, incoming solar radiation and illumination are measured on a Formica rufa ant hill in a mixed forest of theVolga-Kama National Reserve in Russia. These data are used in a conceptual model of insolation of a right conical surface by direct-beam descending atmospheric and ascending ground-reflected radiation. Unlike a standard calculation of the energy flux intercepted by a solar panel, the ant hill is a 3-D structure and double-integration of the cosine of the angle between the solar beams and normal to the surface is carried out for a “cozy trapezium”, where the insects expose themselves and the brood to “morning” sunbathing pulses(Jones and Oldroyd,2007). Several constructal design problems are formulated with the criteria involving either a pure solar energy gained by the dome or this energy,as a mathematical criterion, penalized by additive terms of mechanical energy (potential and friction) lost by the ants in their diurnal forays from a “heartland” of the nest to the sun-basking zone on the surface. The unique and global optima are analytically found, with the optimal tilt angle of the cone explicitly expressed through the zenith angle of the Sun and meteorological constants for the isotropic sky model. (c) 2014 Elsevier Ltd. All rights reserved.

• R.G. Kasimova, D. Tishin, Yu.V.Obnosov, G.M.Dlussky, F.B.Baksht, A.R.Kacimov, Ant mound as an optimal shape in constructal design: Solar irradiation and circadian brood/fungi-warming sorties, Journal of Theoretical Biology, 355 (2014), pp. 21–32.
