Constructal Design of Aircraft

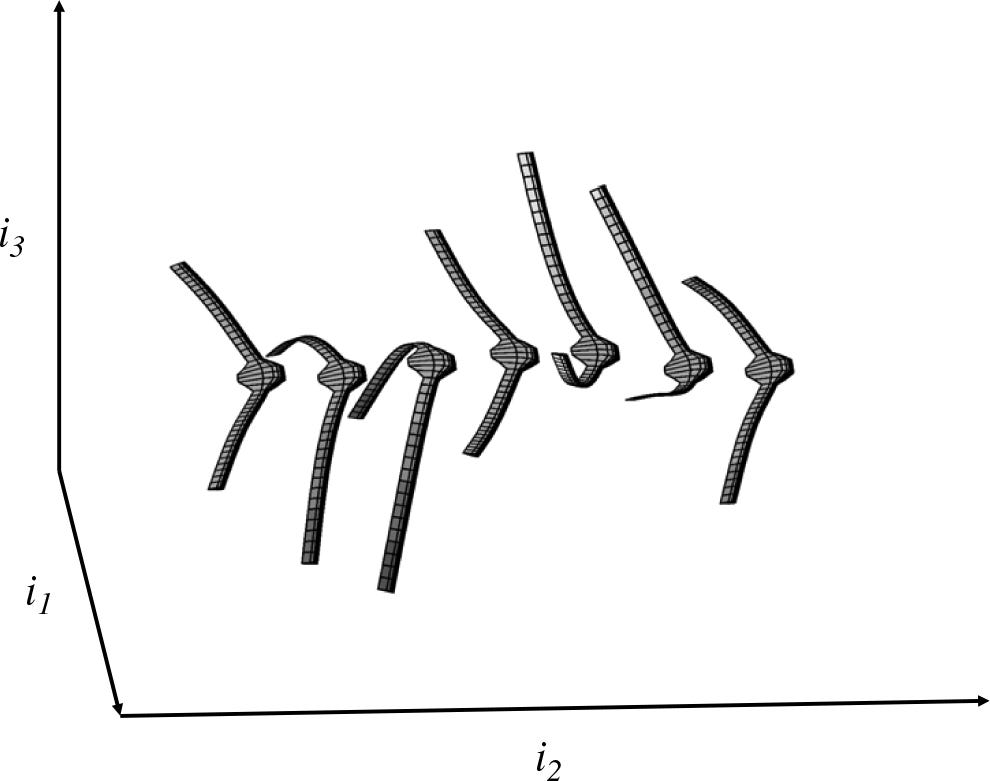

Fig. 3 The unstable symmetric free–free mode shape of the flying wing

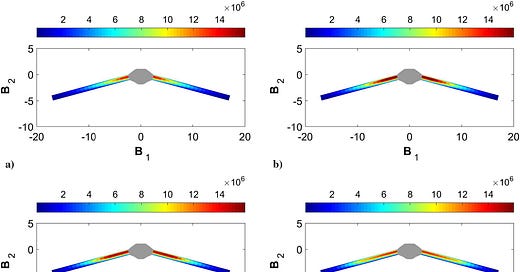

Fig. 14 Distribution of Von Mises stresses along the wing (Pa): a) case 1, b) case 2, c) case 3, d) case 4, e) case 5, f) case 6, g) case 7, and h) case 8.

New fronts of research using Constructal Theory

"Body-freedom flutter characteristics of flying wing aircraft vary with engine placement. Here, we show why a certain design parameter (engine placement) influences the aeroelastic flight envelope of the aircraft. The approach is based on the constructal law and the principle that a design that avoids stress strangulations provides better access to the flows that inhabit the system. This is in sharp contrast with trial-and-error techniques such as optimization, which means to opt from among different choices, cases, and designs. Under the same flight condition, the flow of stresses through the aircraft wings is investigated for several configurations including those with maximum and minimum flutter speeds. The results reveal that when the stresses flow smoothly in the wings the stability of the aircraft improves. On the other hand, in the cases in which the engine location causes stress strangulation, the flutter speed decreases considerably. The most severe stress strangulation corresponds to the aircraft configuration with minimum flutter speed (i.e., engine placement at 20% span behind the reference line). The smoothest flow of stresses happens in the configuration with maximum flutter speed (i.e., engine placement at 80% span forward of the reference line)."
